Industrial Zones Copper Dual Winding Transformer 10kv-0.4kv 30kVA-100kVA 3 Phase

  • 1
  • 2

Place of Origin : China

Brand Name : HENTG Power

Model Number : S13

Certification : CE

MOQ : 1

Type : power transformer, distribution transformer, Oil-filled Transformer

Frequency : 50Hz, 60Hz

Winding Material : Copper

application : Power

Phase : Three

Coil Structure : Layered Winding

Coil Number : Dual-winding coil

Input Voltage : 3kV, 180V, 380V, 115V, 10kV, 6kV, 35kV, 110kV, 110V, 15kV, 115kV, 132kV, 120V, 220V, 220kV, 230V, 240V, 400kV

Output Voltage : 400V , 208V, 200V, 415V, 5V, 127V, 24V, 36V, 110V, 11kV, 480V, 440V, 380V, 48V, 220V

Cooling Method : ONAN ONAF OFAF

Product name : Three Phase Transformer

Material : Aluminum Winding

Application : Power Distribution System

Vector Group : Dyn11/Yyn0

Transformer type : S13-MRL Oil-immersed Transformer

Usage : Power Electronic

Advantage : Customer's Requested Specifications

Impedence : 4%-6% or Customized

Capacity : 30-1600KVA

Product Type : Amorphous Alloy Transformer

Color : Optional

Insulation Class : Class A/E/B/F/H

Transformer Type : S11 Oil-immersed Transformer

Port : Qingdao Port

Number Of Phases : Three Phases

Contact Now

Industrial Zones Copper Dual Winding Transformer 10kv-0.4kv 30kVA-100kVA 3 Phase
Product Specifications
Attribute Value
Type power transformer, distribution transformer, Oil-filled Transformer
Frequency 50Hz, 60Hz
Winding Material Copper
Application Power
Phase Three
Coil Structure Layered Winding
Coil Number Dual-winding coil
Input Voltage 3kV, 180V, 380V, 115V, 10kV, 6kV, 35kV, 110kV, 110V, 15kV, 115kV, 132kV, 120V, 220V, 220kV, 230V, 240V, 400kV
Output Voltage 400V, 208V, 200V, 415V, 5V, 127V, 24V, 36V, 110V, 11kV, 480V, 440V, 380V, 48V, 220V
Cooling Method ONAN ONAF OFAF
Vector Group Dyn11/Yyn0
Impedance 4%-6% or Customized
Capacity 30-1600KVA
Insulation Class Class A/E/B/F/H
Product Description

10kv Voltage Transformer Price 30kva 50kva 80kva 100kva 0.4kv Distribution Transformer 3 Phase Dual-winding Transformer

Covering capacities from 30kVA to 2500kVA, it's widely used in urban power grids, industrial zones, and renewable energy applications under 35kV systems.

Type S13 oil-immersed distribution transformer is based on the original S11 distribution transformer, through the research and application of new materials and new technologies and the combination of independent innovation and technology introduction, through the optimization and innovative design of the core and coil structure, to reduce the no-load loss and noise purposes. Compared with the current national standard JB/T10088-2004, the noise level decreased by 20% on average, and the product performance level reached the domestic advanced level.

Ideal distribution equipment for urban and rural distribution network centers.

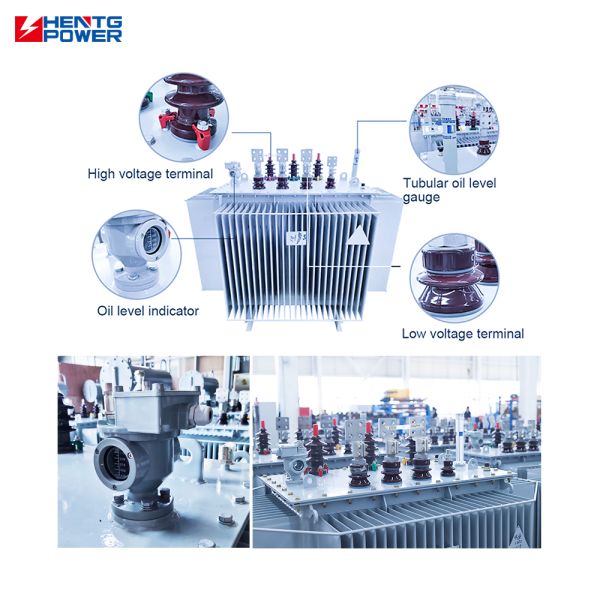

Industrial Zones Copper Dual Winding Transformer 10kv-0.4kv 30kVA-100kVA 3 Phase Industrial Zones Copper Dual Winding Transformer 10kv-0.4kv 30kVA-100kVA 3 Phase
Technical Parameters
Rated capacity (KVA) Vector Group Voltage Combination No-load loss Load loss No-load current Impedance
30 Yyn0 / Dyn11 10 6.3 6 ±5% ±2X2.5% 0.4 80 630 1.5 4.0
50 100 910 1.3
63 110 1090 1.2
80 130 1310 1.2
100 150 1580 1.1
125 170 1890 1.1
160 200 2310 1.0
200 240 2730 1.0
250 290 3200 0.9
315 340 3830 0.9
400 410 4520 0.8
500 480 5410 0.8
630 570 6200 0.6 4.5
800 700 7500 0.6
1000 830 10300 0.6
1250 970 12000 0.5
1600 1170 14500 0.5
2000 1360 18300 0.4 5.0
2500 1600 21200 0.4
Application Scenarios
  • Power Distribution Networks
